The H-SPEED ext.Discharger 200W is an external discharger that has been specially developed for the HERAKLES NEO charger (#HSP0016) and must be connected to it in order to discharge a lithium battery. The maximum discharge power is 200W and the discharge current range is 0.1-15 amps.
The ext.Discharger ensures fast discharging. In conjunction with the HERAKLES NEO charger, it offers more control during discharging compared to conventional dischargers and protects against deep discharges.
Technical specifications |
Item no. HSP0018 |
|---|---|
Discharging power: |
max. 200W |
Supported battery types: |
LiPo, LiFe, Lilon, LiHV |
Number of cells: |
1-6s |
Discharging current: |
0,1-15,0A |
Weight: |
1.2 kg |
Recommended charger: |
HERAKLES NEO |
Dimensions: |
128 x 98 x 95 mm |
Discharge process

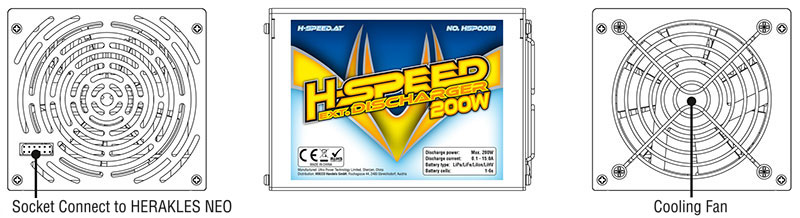

- Switch on the HERAKLES NEO charger and connect the external discharger via the external DISC port with the 12-pin cable.
- Connect a lithium battery to the battery connection of the HERAKLES NEO charger.
- Select the discharge mode [ext.Disc] on channel 1 of the HERAKLES NEO charger. Now set the discharge current up to 15A in 0.1 steps. Please note that a maximum discharge power of 200W can be used here.
- When everything is set, select [Start] with the rotary control and press it.
