The H-SPEED HERAKLES NEO V2.0 is a powerful dual charger specially developed for the RC sector. The updated version offers even more power and greater software stability.

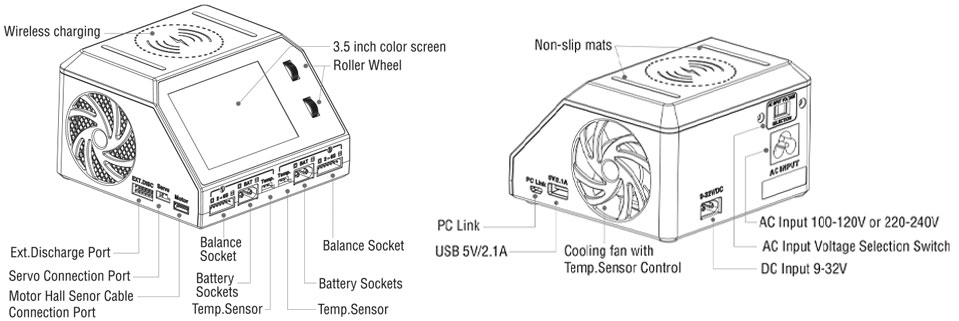

Its exceptionally large 3.5″ LCD display shows all the important data and is easy to read. Two dials, one for each charging channel, make scrolling through the menus extremely easy.
The two separate charging outputs allow you to charge two batteries of different types at the same time.
Additional features include the wireless charging function for cell phones and the test system for motors and servos.
Expected availability summer 2025!
Technical specifications |
Item no. HSP0051 |
|---|---|
Input voltage: |
AC 100-240V, DC 9.0-30V |
Output voltage: |
0.1-30V |
Charging current: |
2x 0.1-16.0A |
Discharge current CH1: |
0.1-3.0A/0.1-15.0A |
Discharge current CH2: |
0.1-3.0A |
Charging power DC: |
2x 300W |
Charging power AC: |
max. 400W (CH1+CH2=400W) |
Discharge power CH1: |
8W/200W |
Discharge power CH2: |
8W |
LiPo/LiFe/Lilon/LiHV Number of cells: |
1-6s |
NiCd/NiMH Number of battery cells: |
1-16s |
Pb Battery current: |
2V-24V (1-12s) |
Wireless charging power: |
max. 10W |
Balance current: |
max. 1000mAh/cell |
LCD screen type: |
3.5″ 480×320 LCD |
Temperature: |
Operation: 0-40°C |
Dimensions: |
125x119x76mm |
Weight: |
780g |
The motor test function allows you to check the condition of the engine.
The servo test function checks the rotation and angle of the servo.
An external discharging function enables you to significantly reduce discharging times.
