More power. More control. More comfort.
The HERAKLES NEO V2.0 delivers more power and optimized software for even more stable operations and more precise loading processes.

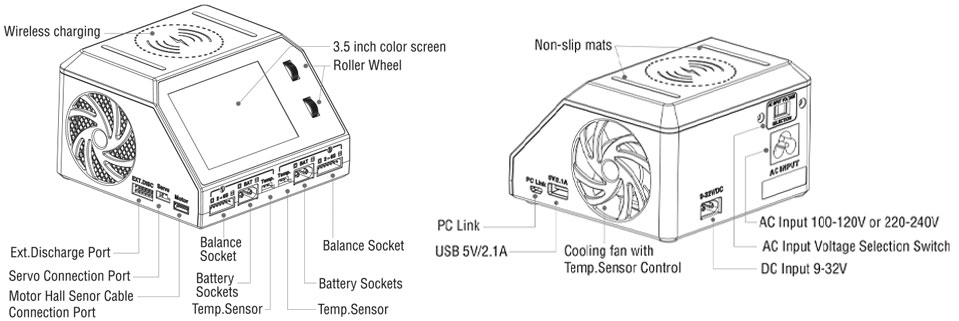

The 3.5″ color LCD display is large, crystal clear, and perfectly readable—even in daylight. Two separate rotary controls ensure intuitive operation: each channel can be configured independently and at lightning speed.
Dual charging without compromise:
The two separate charging outputs allow different battery types to be charged simultaneously – ideal for model builders with multiple setups.
More watts, more possibilities:
The AC charging power has been increased from 300 to 400 watts, which results in noticeable time savings, especially with powerful battery packs. In DC mode, up to 300 watts are available per channel.
Top features for modern RC users:
– Wireless charging for smartphones (up to 10W)
– Integrated servo and motor test connection
– Powerful balancer with up to 1000mAh/cell
Technical specifications |
Item no. HSP0051 |
|---|---|
Input voltage: |
AC 100-240V, DC 9.0-30V |
Output voltage: |
0.1-30V |
Charging current: |
2x 0.1-16.0A |
Discharge current CH1: |
0.1-3.0A/0.1-15.0A |
Discharge current CH2: |
0.1-3.0A |
Charging power DC: |
2x 300W |
Charging power AC: |
max. 400W (CH1+CH2=400W) |
Discharge power CH1: |
8W/200W |
Discharge power CH2: |
8W |
LiPo/LiFe/Lilon/LiHV Number of cells: |
1-6s |
NiCd/NiMH Number of battery cells: |
1-16s |
Pb Battery current: |
2V-24V (1-12s) |
Wireless charging power: |
max. 10W |
Balance current: |
max. 1000mAh/cell |
LCD screen type: |
3.5″ 480×320 LCD |
Temperature: |
Operation: 0-40°C |
Dimensions: |
125x119x76mm |
Weight: |
780g |
The motor test function allows you to check the condition of the engine.
The servo test function checks the rotation and angle of the servo.
An external discharging function enables you to significantly reduce discharging times.
